Juggling multiple clouds, on-prem systems, and thousands of servers? One moment, everything’s running smoothly. The next — an outage hits, and you’re scrambling. No warnings. No clear root cause. Every change feels like a gamble, and troubleshooting becomes a marathon of frustration.
Why does this keep happening? The answer lies in one missing piece: dependency mapping. Without it, your infrastructure is a puzzle with half the pieces missing. You’re operating in the dark, risking downtime, delayed projects, and endless headaches.
The fix: automated dependency mapping between configuration items. It’s the key to uncovering how your infrastructure’s components work together — visualizing every connection, predicting risks, and planning confidently.
This article dives into what dependency mapping is, why it’s critical, and a simple 5-step strategy to map your infrastructure.
Let’s get started 👇
What is CIs dependency mapping?
CI (Configuration Item) Dependency Mapping is all about untangling the web of relationships between your IT assets in your IT environment. Think servers, databases, applications, network devices — you name it. Understanding how these components interact with each other helps you see how a change to one piece can ripple through your entire infrastructure.
When it comes to representing dependencies between CIs, there are two main approaches: visual dependency maps and tabular formats. Each has its strengths and limitations, and the best choice often depends on your specific needs and workflow.

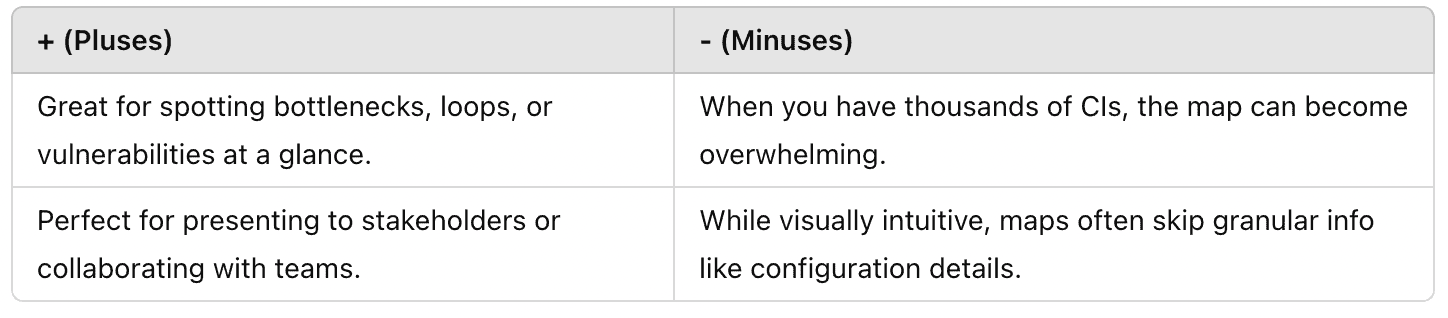

1️⃣ Visual Dependency Map is bird’s-eye view of your infrastructure — lines connecting nodes like a web, showing how CIs interact. Each node represents a CI (e.g., servers, databases, apps), and the lines show their dependencies.

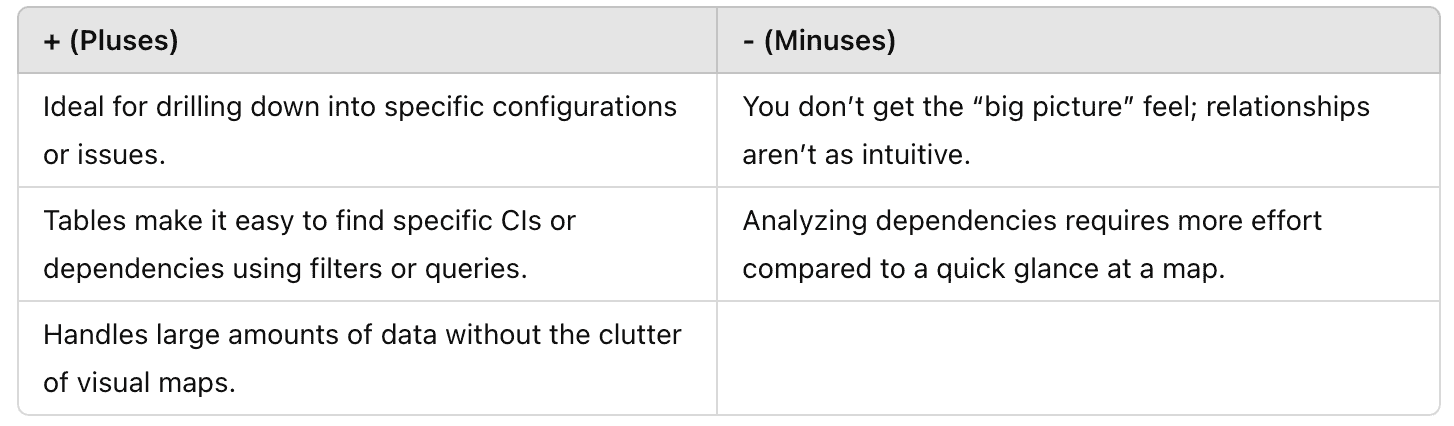

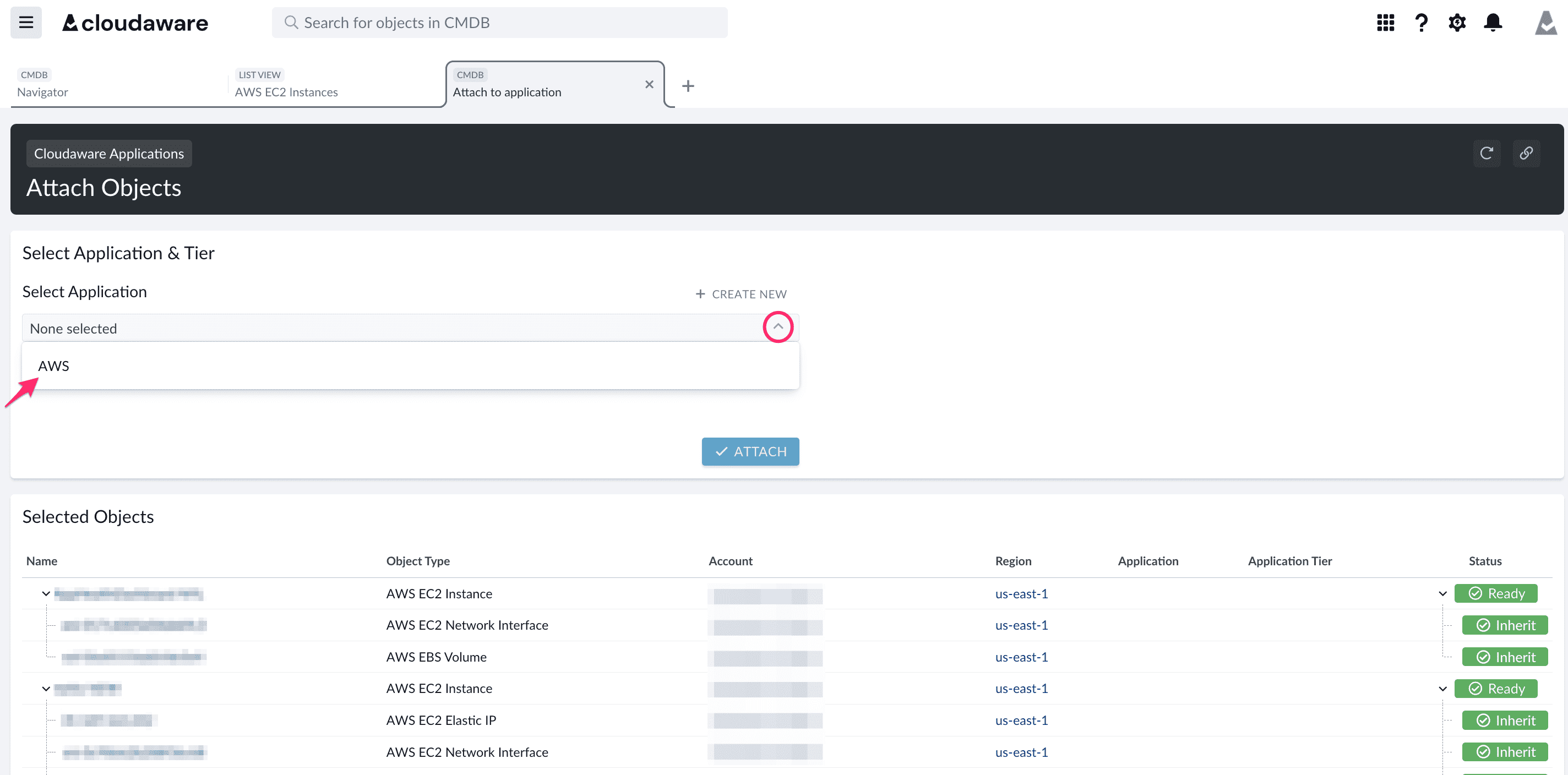

2️⃣ Grid Format. Think rows of CIs with columns detailing relationships between them, metadata (e.g., versions, IPs, ports), and statuses.
How Does Application Dependency Mapping Work?
Picture this: an IT manager at a mid-sized enterprise sitting in the war room after another mysterious outage. The culprit? Their hybrid infrastructure — a chaotic mix of AWS, Azure, and on-prem servers. Something broke, again, and no one has a clue why. The team is frustrated, sleep-deprived, and spinning in circles.
Sound familiar? That was daily life for one Cloudaware client (NDA - can’t name it). Every update felt like Jenga, with invisible dependencies causing surprise collapses. They needed clarity — fast.
They turned to the Cloudaware CMDB. Step one? Integrating their sprawling environment — AWS accounts, Azure subscriptions, VMware clusters. From there, the CMDB’s automated discovery process went to work, collecting data from every corner of their infrastructure.
What it found was staggering. EC2 instances hosting web servers, Kubernetes pods managing containerized apps, RDS databases powering critical workflows — the CMDB captured it all. It didn’t stop at inventory. The dependency mapping tool pulled metadata like OS details, network configurations, and active services with laser precision.
The CMDB analyzed communication flows, identifying relationships between IT assets they hadn’t documented.
For example, a web server on EC2 wasn’t running solo; it depended on a MySQL database in RDS. And their load balancer? It was quietly handling traffic across multiple app servers, flagging a sneaky bottleneck in the process.
For this team, their new dependency map wasn’t just a diagram — it revealed relationships between CIs they hadn’t fully understood. This insight became their secret weapon, turning chaos into clarity and saving a lot of sleepless nights.
But wait, aren’t relationships and dependencies between CIs are the same?
Difference between “relationships” and “dependencies” between CIs
Relationships and dependencies between CIs are like the foundation of any solid dependency mapping process — but they’re not the same thing.
- Relationships. Think of them as the web that shows which server interacts with which database, which application communicates with which API, and so on. A relationship map lays it all out, helping you visualize how everything in your IT environment is interconnected.
But here’s the thing: just because two CIs are connected doesn’t mean one relies on the other to function. - Dependencies. Dependency mapping dives deeper, pinpointing where one CI’s performance or functionality is directly tied to another.
For example, if your app server depends on a database to operate and that database goes down, your app is toast.
Dependencies reveal those critical links that could disrupt your operations if something breaks.
The magic of dependency mapping lies in showing both relationships (such as how servers, applications, and databases interact) and dependencies, which help you focus on the critical paths that need protection.
Why do you need to define CI dependencies?
Why is application dependency mapping important? Because without clear visibility, you’re risking unnecessary outages and inefficiencies. In a hybrid IT environment with thousands of CIs — servers, databases, applications — you need to know how everything connects. Dependency mapping lays it all out for you, showing the impact of changes and ensuring smooth operations.
For example: Your company updates its network infrastructure after switching to a new internet provider. Suddenly, DNS entries and firewall rules aren’t working as expected, causing disruptions. With dependencies mapped, you’d know exactly which CIs needed adjustments to maintain connectivity and avoid downtime.
Benefits of Application Dependency Mapping:
- Prevent Downtime. A clear dependency map identifies risks and ensures seamless transitions during updates.
- Faster Troubleshooting. Pinpoint the root cause of issues quickly with well-documented relationships between your infrastructure elements .
- Optimized Planning. Dependency mapping supports proactive changes and smarter upgrade planning.
- Improved Collaboration. A defined map of dependencies keeps all teams aligned and informed.
The benefits of dependency mapping aren’t just about avoiding issues. They’re about running your IT environment efficiently, reducing headaches, and staying ready for growth. With every dependency between IT assets documented, your infrastructure becomes easier to manage and optimize.
4 types of application dependency
Alright, let’s dive into the types of application dependencies you’ll see in your hybrid IT setup. Each type plays a specific role in keeping your systems connected, and knowing how they work is essential for your infrastructure performance.
1. Service Dependencies
These are the connections between your applications and external or internal services they rely on. For example, your customer portal app (CI: CustomerPortal_App01) might depend on an identity management service like Okta (CI: Okta_AuthService01) to validate users or an email server (CI: MailServer_01) for sending notifications.
How it works: Dependency mapping links these services to your applications, tracking uptime and performance metrics. If your Okta_AuthService01 is down, you’ll know why customers can’t log in.
2. Data Dependencies
These involve applications that depend on data from other systems. For instance, your analytics dashboard (CI: Analytics_Dashboard01) pulls transactional data from a CRM database (CI: CRM_DB01). If that database is unreachable, your dashboard is running blind.
How it works: A dependency map visualizes data flows, showing paths, query dependencies, and even access configurations. This helps you troubleshoot issues like failed API calls or database locks faster.
3. Infrastructure Dependencies
This type ties applications to the underlying infrastructure, like servers, storage, or network settings. For example, your e-commerce platform (CI: Ecomm_App01) might rely on an EC2 instance (CI: AWS_EC2_WebServer01), an RDS database (CI: AWS_RDS01), and a load balancer (CI: AWS_LB01).
How it works: Mapping these links ensures you can pinpoint which infrastructure issue (like AWS_LB01 throttling traffic) affects your applications.
4. Application-to-Application Dependencies
Applications talking to other applications — this is where APIs, integrations, and workflows come into play. For example, your ERP system (CI: ERP_System01) might exchange data with your financial app (CI: FinanceApp01) or sync with a warehouse management tool (CI: WarehouseMgmtApp01).
How it works: Dependency mapping tracks these interactions, keeping tabs on API statuses, version mismatches, and compatibility issues that might otherwise disrupt operations.
By mapping all these dependencies, you’re not just untangling relationships between Cis — you’re building a rock-solid system where every IT asset plays its part without surprise breakdowns. That’s the dream, right?
Use cases Mapping dependencies between Cis
Let’s dive into some real-world scenarios where dependency mapping can help you take control and avoid the chaos that comes with managing complex hybrid infrastructures. Here are some stories from Cloudaware clients to highlight how mapping relations between CIs can save you time, money, and frustration.
1. Handling a Server Upgrade: The Chain Reaction
You’re managing a hybrid environment with AWS and on-prem servers. You need to upgrade a web server hosted on an EC2 instance, but you’re not sure how this change will ripple through the infrastructure. So, you pull up your dependency map to get a better picture of the relationships between your cloud assets.
Here’s what you discover:
- The web server depends on an RDS database for backend operations.
- Internal DNS entries are tied to this web server.
- Your load balancer is routing traffic to multiple app servers that are connected to this EC2 instance.
With the dependency mapping tool, you can plan the upgrade properly. You realize that the database and app servers will also need scheduled downtime. What you thought was just a simple server upgrade becomes a coordinated effort across multiple CIs. You avoid breaking connections and ensuring everything runs smoothly.
2. Troubleshooting a Mysterious Outage: The Missing Link
One of Cloudaware’s clients, an enterprise with thousands of servers and cloud accounts, faced a sudden outage. No one knew what changed to cause it, but you’ve got the tools to dig deeper. You open the dependency mapping tool and start analyzing your CIs.
You quickly discover a misconfigured firewall rule on your load balancer, blocking traffic to EC2 instances. As you continue examining the dependency map, you find that several Kubernetes pods depending on these instances aren’t functioning properly.
Thanks to the dependency mapping, you pinpoint the root cause and fix the firewall issue quickly, avoiding unnecessary downtime and frustration for your team.
3. Preparing for an AWS Migration: Mapping Dependencies First
When migrating from on-prem to AWS, one of Cloudaware's clients needed to ensure they wouldn’t face unexpected problems. They used dependency mapping to understand their existing infrastructure and relationships between key CIs, like VMware servers, network configurations, and API gateways.
Through the map, they discovered that their app servers were heavily dependent on an on-prem database, which wasn’t yet replicated in AWS. Thanks to the clear visualization of these dependencies, they adjusted their migration plan to set up a hybrid connection between on-prem and cloud environments to maintain continuity.
4. Responding to a Security Breach: The Weak Link
A Cloudaware client discovered a vulnerability in one of their SQL databases hosted on RDS, and security was top priority. They opened their dependency map to assess how this might affect other parts of their infrastructure.
What they found:
- The app servers are directly connected to the SQL database.
- Web servers interact with the database less frequently but still rely on the same API connection.
With the dependency mapping tool, they identified which CIs to patch first to secure the vulnerable database without disrupting the entire infrastructure. They could patch the database while ensuring the API connections between the web and app servers stayed intact.
5 steps strategy to map dependencies between Cis
Step 1: Set Up Automated Discovery for Your Infrastructure
The first step in application discovery and dependency mapping is ensuring you have a complete inventory of your infrastructure. You can achieve this by integrating your systems with a CMDB, such as Cloudaware’s.
Automated discovery tools are crucial here. They scan your entire environment across clouds, data centers, and on-prem systems, pulling in detailed information about each CI. Key assets typically discovered include:
- Web servers (e.g., EC2 instances)
- Application servers (e.g., Kubernetes pods)
- Databases (e.g., MySQL, RDS instances)
The goal is to ensure that every Configuration Item (CI) is captured. The discovery process will pull in all relevant metadata — operating systems, IPs, ports, services, and configurations — automatically, eliminating the need for manual tracking.
Step 2: Identify Relationships Between CIs
This is where dependency mapping truly comes into play. Once you have your CIs, you need to map how they interconnect manually or use automated CMDB for this task. This involves understanding how each CI depends on others to function.
For example, web servers (on EC2) depend on application servers to handle business logic and databases for persistent storage. Application servers often rely on APIs, microservices, or backend services to perform various functions. This is where application dependency mapping tools really shine — they track communication patterns such as:
- API calls: Between web servers and app servers
- Database queries: From application servers to MySQL or Postgres
- Traffic routing: From load balancers to application servers
By identifying and capturing these relationships, you can visualize how failure in one CI impacts others, ensuring you have a clear understanding of your system's dependencies.
Step 3: Visualize Your Dependency Map
Once dependencies are identified, it’s time to visualize them in applications dependency map. This map should be interactive, giving you a clear view of how all your CIs are interconnected.
Each CI is a node in the map, and lines indicate the dependencies between them. For example:
- Web Server (EC2) → App Server (Kubernetes pod) → Database (RDS)
- App Server → Cache (Redis) → Queueing System (RabbitMQ)
This visual map enables you to assess how a change in one component — say, modifying a database configuration — could disrupt the connections between CIs. With this map, you can plan changes without causing unintentional disruptions.
Step 4: Analyze and Fine-Tune Dependencies
Now, with your dependency map in hand, it’s time to analyze the relationships for potential risks. You should look for:
- Bottlenecks. Any services that are overloaded and might not scale effectively.
- Single points of failure. For example, a single web server handling all requests with no redundancy.
- Redundant or unnecessary dependencies. Some CIs might be over-relied upon, causing inefficient dependencies.
Fine-tuning these dependencies is vital to understanding both your system’s performance and resilience, especially under stress or failure conditions.
Step 5: Monitor Continuously
The final step is ensuring your applications discovery and mapping stay current. As your infrastructure evolves, your CMDB must continue discovering and monitoring any changes. Automated discovery tools should run at regular intervals, ensuring new CIs are captured as soon as they’re introduced — whether that’s a new microservice in Kubernetes or a fresh load balancer.
Additionally, as your teams make changes (like patching servers or scaling applications), you need to monitor your dependency map accordingly. This ensures that any dependency changes — no matter how small — are accounted for, so you don't accidentally break something important.
Application dependency mapping best practices
It’s one of those things that sounds super simple until you’re knee-deep in a sprawling cloud infrastructure. After working with Cloudaware clients and seeing the ins and outs of dependency mapping, I’ve picked up a thing or two.
So, if you’re looking to master this art (and trust me, it is an art), let’s dive into some best practices that’ll help you keep your infrastructure clean, reliable, and scalable.
1. Automate Everything, Seriously
Don’t even think about manually tracking your CIs and dependencies. In 2025, that’s a recipe for disaster. Trust me on this one. You need automated discovery tools to make sure you're not missing a single CI across your entire environment. Cloudaware’s application discovery and dependency mapping tools are your best friend here. They scan your entire environment — cloud, on-prem, hybrid setups — and pull in all CIs in real time. I’m talking about servers, databases, load balancers, virtual machines, containers — everything. It picks up on the underlying metadata like OS versions, IP addresses, ports, and configurations, and that’s just the beginning.
Automating this process means you’re always working with a live, up-to-date inventory of your infrastructure. No more worrying about missing critical components or dealing with outdated data that makes everything else fall apart. It’s the core of your application dependency map.
2. Don’t Just Map, Understand Dependencies between CIs
Okay, so you’ve got your CIs in place. Now, it’s time to map them. But here's the thing: just identifying dependencies between CIs isn’t enough. You need to understand it.
Let’s say you have a web server. It might depend on a load balancer, which depends on an app server, which depends on a database. And guess what? That’s not the full picture. You need to know the direction of the data flow, the frequency of requests, and what could break if something goes down.
Tack not just direct connections, but also indirect ones. Look for things like:
- API calls between your app servers and microservices
- Database queries going from your app server to your RDS instance
- Traffic routing through load balancers, etc.
This is about understanding the critical paths and how every piece of the puzzle impacts the others. It’s like a complex web of relationships, and knowing how it all fits together will save your life when troubleshooting.
3. Keep Dependencies between IT assets Lean and Mean
As systems grow, developers and teams might add new dependencies without fully considering the downstream effects. You can end up with a lot of unnecessary connections that aren’t adding value.
My advice? Regularly audit your dependencies to make sure you’re not over-relying on a single CI. Look for things like:
- Unused dependencies. Is a database that’s been decommissioned still showing up in your map?
- Over-dependencies. Is one web server handling all the requests with no failover or redundancy?
- Over-complicated connections. Are multiple apps connected in ways that could be simplified?
You can fine-tune your infrastructure by removing or consolidating redundant dependencies, which makes it leaner and more efficient. Think of it like decluttering your office — once everything has its place, work gets easier. When you get dependency mapping right, you're not just managing infrastructure — you’re controlling it. With automated discovery and a clear, dynamic application dependency map of your system elements, you’re ready to tackle anything that comes your way.

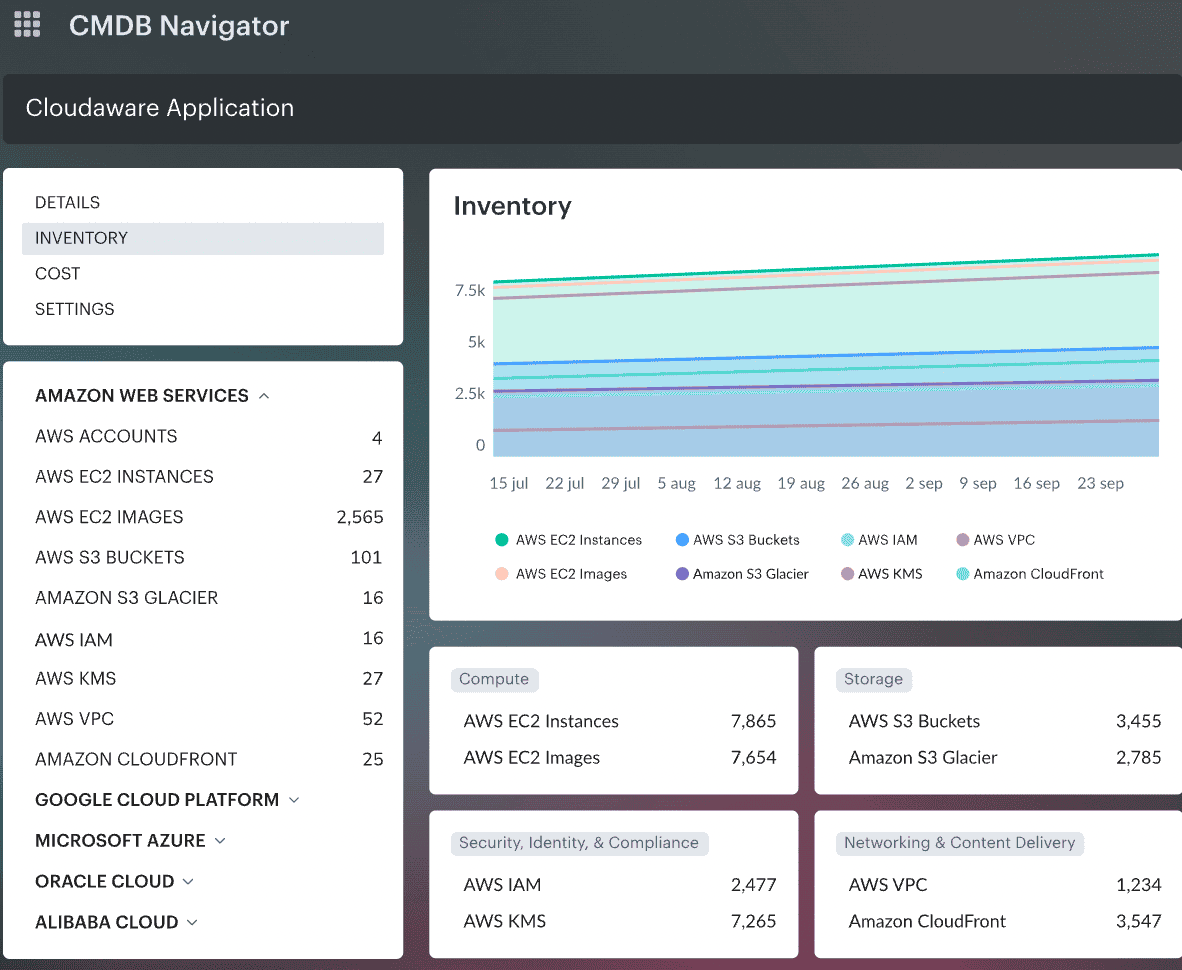

Visualize your cloud infrastructure with Cloudaware CMDB

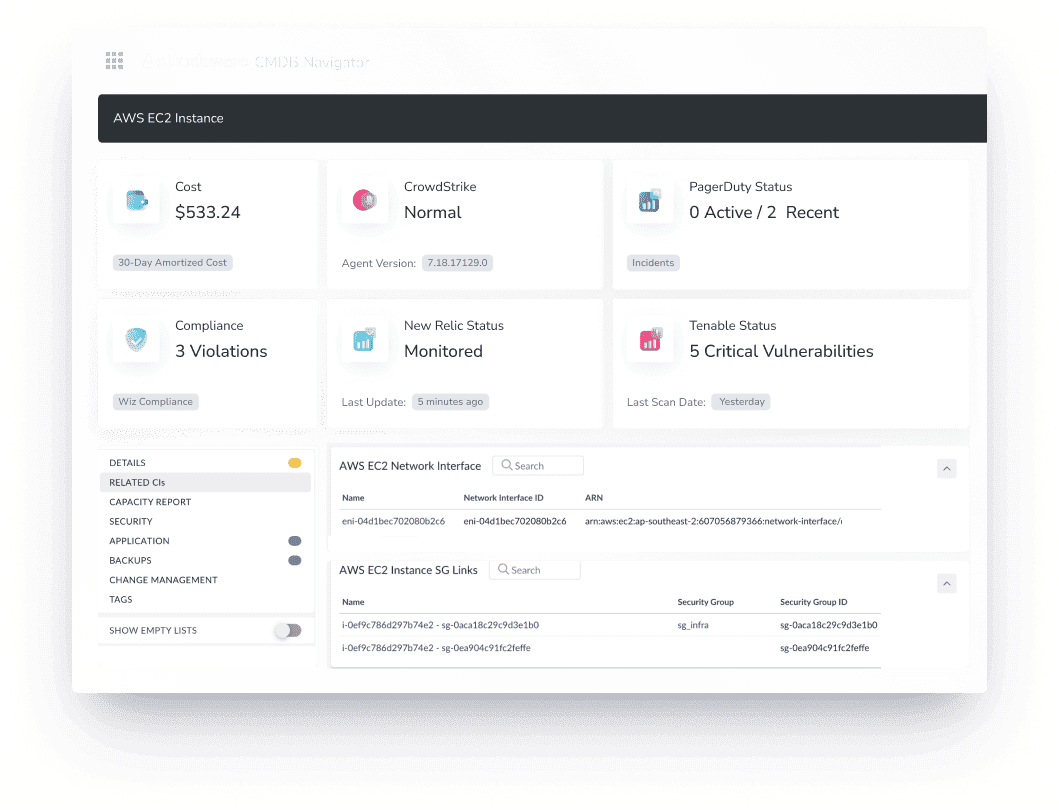

Cloudaware application dependency mapping software.
Cloudaware CMDB is designed to give enterprises a clear, real-time view of their complex hybrid IT infrastructure. It automatically discovers both cloud and on-prem assets and enriches them with valuable data. Think cost, vulnerabilities, patch statuses, and business role.
This makes managing thousands of accounts and servers much easier.
The system also goes a step further by mapping dependencies and relationships, giving a clear understanding of how everything connects. Whether it’s tracking connections between servers or seeing how applications rely on cloud services, Cloudaware’s dependency mapping tool simplifies decision-making.
Its top features include:
- Real-time asset discovery and mapping
- Automated relationship and dependency mapping
- Deep data enrichment from cloud and third-party sources
- Customizable dashboards and reports
- Secure, compliant infrastructure with built-in encryption and MFA
FAQ
What is application dependency mapping?
Application dependency mapping identifies and visualizes the relationships between applications, services, and infrastructure. It uses application discovery to create dependency maps that visualize how components interact within an IT environment.
Why is application dependency mapping important?
It’s crucial for identifying critical dependencies and resolving issues faster. Accurate application dependency mapping also ensures better resource management, while improving troubleshooting, security, and scalability.
What are the best application dependency mapping tools
- Cloudaware CMDB
- ServiceNow
- Dynatrace
- SolarWinds
Are there free application dependency mapping tools?
There are no completely free tools, but Cloudaware offers a 30-day free trial, so you can explore its application dependency mapping software and features.
